WORLD'S MOST POWERFUL PMA/PMG's -

By Hornet Power Systems

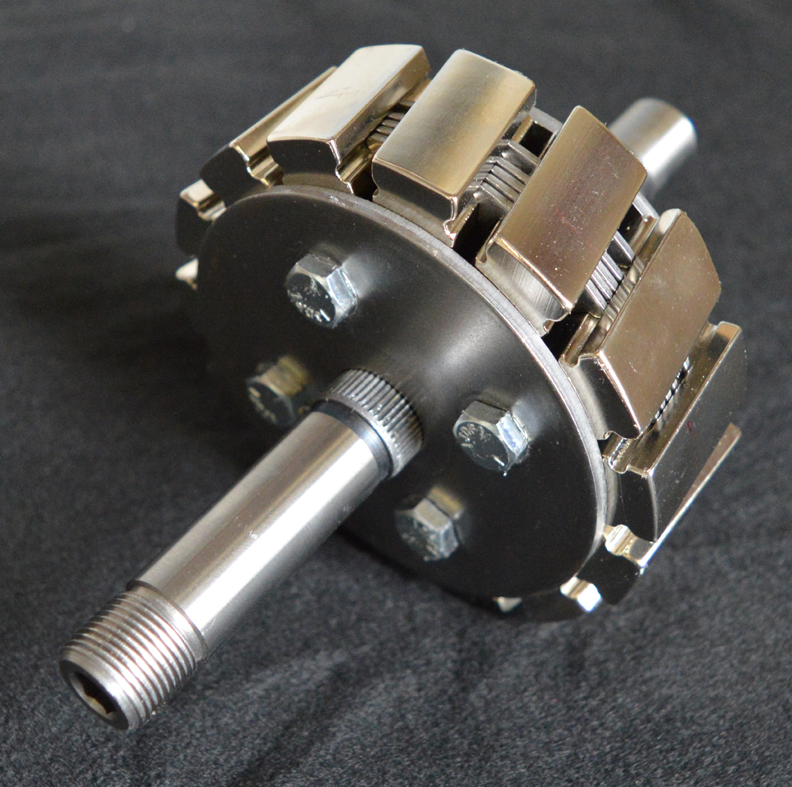

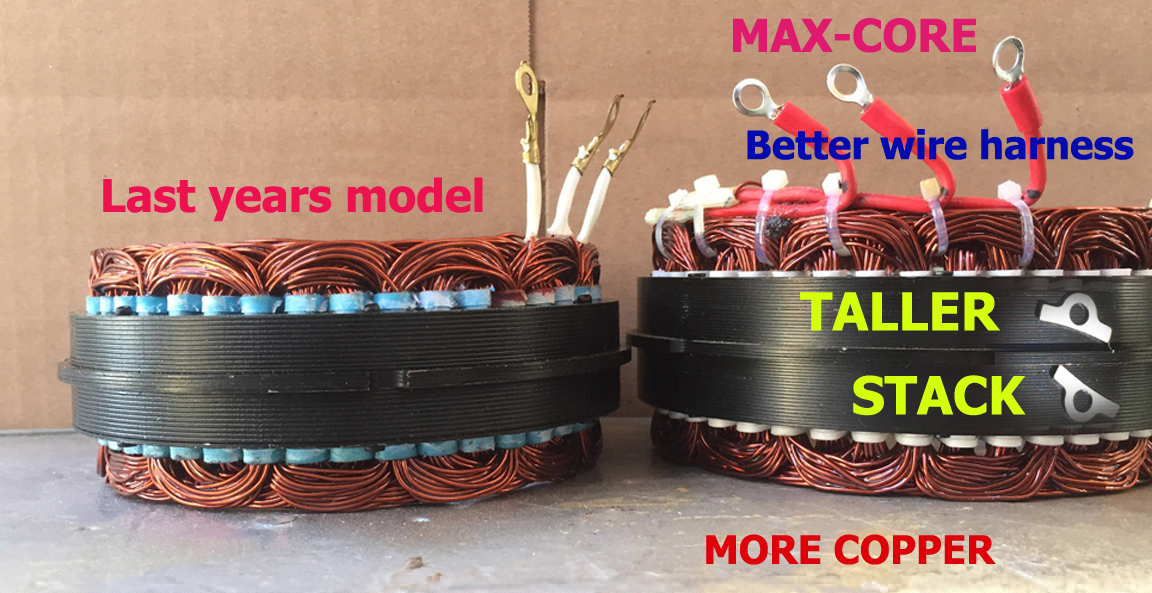

MAX CORE PMA's /
With Larger Coils
LOTS OF POWER!

Use these powerful permanent magnet alternators (PMA/PMG's) to make cheap electricity from Wind, Hydro, Steam and Bio-Diesel power systems.
Stop wasting up to 50% of your power energizing the
coil of standard brush type alternators. Get a real PMA/PMG!

Permanent magnet alternators are by no means standard "Automotive"
alternators containing brushes and electro-magnetic coils. A PMA/PMG does not waste power by having to continuously create an energy intensive magnetic field.

We sell only highly efficient - long lasting true permanent magnet alternators!

For PMA/PMG Testimonials Click Here

PMA/PMG PARTS LINK

#MC series - Maxcore PMA/PMG Technology!
PROUDLY MADE IN THE USA!





Max-Core AC / 3-phase / 3-wire (DC models below)



By Hornet Power Systems



Includes cooling fan and 80MM pulley as stand equipment.
DO NOT REMOVE COOLING FAN! This model can get hot! VERY POWERFUL!!
Please note that when our PMA/PMG's turn they make a ratcheting noise at slow speeds.

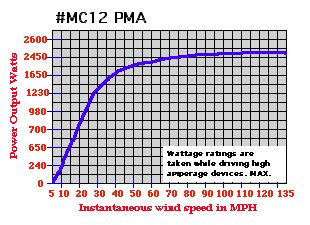

Serpentine pulley system required loads over 4000 Watts See Power curves -
You can go from 12 to 60 volts just by changing the pulley ratio.
For an engine or hydro driven system the QC1212 it is the BEST choice since it is so powerful and versatile.

1230 RPM for 12 Volt battery charging.
2030 RPM for 24 Volt battery charging.

2700 RPM MAXIMUM!
Max-Core AC / 3-phase / 3 Wires


#MC12AC - Only $439.95 plus $49.50 S&H fee.
Cooling fan highly recommended for engine, hydro and belt driven applications!

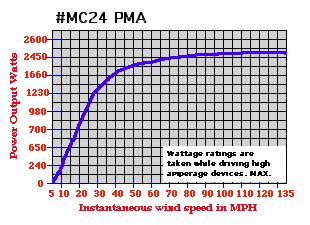

#MC24AC - Only $439.95 plus $49.50 S&H fee.
Cooling fan highly recommended for engine, hydro and belt driven applications!















#MC48AC - Only $449.95 plus $49.50 S&H fee.
Cooling fan highly recommended for engine, hydro and belt driven applications!
OUT OF STOCK!
OUT OF STOCK!
OUT OF STOCK!
















Max-Core DC / Single-phase / Pos / Neg Ground -




By Hornet Power Systems


2700 RPM MAXIMUM!

Includes cooling fan and 80MM pulley as stand equipment.
DO NOT REMOVE COOLING FAN! This model can get hot! VERY POWERFUL!!
Please note that when our PMA/PMG's turn they make a ratcheting noise at slow speeds.
Serpentine pulley system required for high loads See Power curves -
You can go from 12 to 60 volts just by changing the pulley ratio.
For an engine or hydro driven system the QC1212 it is the BEST choice since it is so powerful and versatile.

1230 RPM for 12 Volt battery charging.
2030 RPM for 24 Volt battery charging.

2700 RPM MAXIMUM!

#MC12DC - Only $439.95 plus $49.50 S&H fee.
Cooling fan highly recommended for engine, hydro and belt driven applications!














#MC24DC - Only $439.95 plus $49.50 S&H fee.
Cooling fan highly recommended for engine, hydro and belt driven applications!















#MC48DC - Only $449.95 plus $49.50 S&H fee.
Cooling fan highly recommended for engine, hydro and belt driven applications!
OUT OF STOCK!
OUT OF STOCK!
OUT OF STOCK!















VIDEOS



If you plan to put your PMA/PMG in a salt water environment you
MUST coat all metal surfaces to prevent the disaster of corrosion!
Create a salt water and corrosion proof PMA/PMG with our Special Green Marine Varnish
We offer the longest extended warranty in the industry - 10 years!!!
You can buy an extended contract for a full 10 years!!!!!!!!
Standard warranty is 90 days for all wind turbines on this site.
For a full 10 year extended warranty click here for more info

Use these powerful permanent magnet alternators (PMA/PMG's) to make
cheap electricity from Wind, Hydro, Steam and Bio-Diesel power systems.

Stop wasting up to 50% of your power energizing the
coil of standard brush type alternators. Get a real PMA/PMG!

Permanent magnet alternators are by no means standard "Automotive" alternators
containing brushes and electro-magnetic coils. A PMA/PMG does not waste power by
having to continuously create an energy intensive magnetic field.

We sell only highly efficient - lon lasting true permanent magnet alternators!

For PMA/PMG Testimonials Click Here


"The UC Series PMA/PMG Is A True Low RPM Power House!"


LOTS OF LOW END POWER GENERATION ABILITY
Great for charging BIG battery banks that are drained.
Great for heavy amp loads! The higher the amp load the harder they work.
Perfect for building simple, inexpensive and dependable wind or water turbines.
A put-up and forget design! Expect decades of dependable service life.
Bi-rotational. Makes power when turned in either direction.
Note: Clockwise is the preferred direction since the nut tends to stay on and it cools better!
All weather rated. Rain, ice and weather proof electronics.
Light weight aluminum body.
17MM hardened shaft.
D.C. output. Includes built in rectifier.
2.33 phase magnetic field spread for maximum efficiency +low cogging!
Heavy Duty coils and diodes.
Bearings rated for 115,000 hours +
14 powerful #42H Neodymium magnets.
Warranty - 90 days parts and labor for defects (not from overheating) FOB Lancaster, CA
2700 RPM MAXIMUM!






Build a powerful battery charger for those cloudy or windless days using our powerful PMA/PMG's


Photo shows two of our PMA/PMG units that one of our customers powered with an 8 HP engine. After thousands of hours the PMA/PMG's are just NOW getting broke in and stating their 75 year projected life cycle since there are no brushes to wear out or worry about.

(Do not forget to order a cooling fan kit!)



GET FREE HOT WATER WHEN YOU USE WATER COOLED ENGINES

http://www.youtube.com/watch?v=PFL8UD1c0SI
http://www.youtube.com/watch?v=iYWRqw6O-wM
http://www.youtube.com/watch?v=kEIL1v0mo-8
http://www.youtube.com/watch?v=F0Rx1UW_qHw
Fan and pulley option for all engine and hydro powered systems -
Model #PFK Series - $49.00 ea. Choose from the TWO sizes below.

#PFK Series - Pulley and fan kit - Includes your option of :

#PFK60B - 60MM standard pulley for wide 1/2" belts -
#PFK80B - 80MM standard pulley for wide 1/2" belts -
#PFK60B - 60MM Serpentine pulley -
#PFK80B - 80MM OD Serpentine pulley -

Click To See Instructional Video On Pulley Installation


A LARGE extra heavy duty cooling fan must be used for all engine, hydro and or belt driven systems. Wind turbines usually have enough air circulation not to require a fan BUT you must determine this fact by testing and observation. Specify your series #PFK cooling fan kit option at the time of your PMA/PMG order. Our PMA/PMG's are not fail safe!!! If you over load them they can burn out!!! You as the designer must watch carefully for signs of over heating. We will not warranty any fried PMA/PMG's!!!!!!

HEAT WARNINGS:
IF you are pulling over 500 Watts without a cooling fan your PMA/PMG it will over heat! Fan kits are very important to have on ALL high amp applications!!!!--- Keeping your PMA/PMG's cooled, fused and under reasonable loads is the operators full responsibility. Monitor your PMA/PMG for excessive heating in all experimental machinery! Maximum PMA/PMG's operating temperature is 350 F. for 100% duty cycle. No warrantees on ANY burned out PMA/PMG's! They are sold in good working condition and you have to keep them cool and never over loaded regarding amperage draw.

A PMA/PMG RUNNING SLOW WHILE DRAWING A FULL AMP LOAD IS A DEAD PMA/PMG!
Here is guide to help you choose the right PMA/PMG and keep it cool via the correct RPM V. AMPS coefficient
These figures must then be matched to the power curves. This total calculation must be done
correctly or you may find yourself burning up a few PMA/PMG's as part of your learning curve.
(Expensive lessons for the inexperienced!!!!!!!! All Sales Final.)

POWER DRAW CHART
0 to 300 Watts - Required RPM for proper cooling fan operation = 0 to 300 rpm
300 to 800 Watts - Required RPM for proper cooling fan operation = 1400 rpm
800 to 1500 Watts - Required RPM for proper cooling fan operation = 2500 rpm

2700 RPM MAXIMUM!

Following these figure are ONLY a guide and is not a guarantees cool operation since your amp load can still be to extreme. Don't pull more amperage then they can handle. If you burn one up you own it!!! No warranties on burned up PMA/PMG's!!! All Sales Final. If you are an amateur and do not understand electrical windings and how much heat they can take please don't buy one of our PMA/PMG's. If you are experienced watch for over heating and be careful.

Tech notes: Do not attempt to use a pulley smaller than 60MM" - The belt tension required to keep the belt from slipping on a smaller pulley will cause excessive pressure on the front bearing shorting its life.

5 to 8 HP engines are the most popular choice for people trying to achieve maximum results from their PMA/PMG's when utilizing internal combustion engines. A 5 to 6" engine pulley works good on 4 to 10 horse power engines and a 6 to 9" drive pulley has reportedly worked good for 10 and 18 horse power engines.
Torque Calculations:
We have no Torque figures since Torque is totally a function of LOAD. A PMA/PMG with no
load requires ZERO torque to turn at a ZERO load. You can't rate PMA/PMG's with simple torque
figures since "AMPS" or "LOAD" is up to every individual situation and individual people
have endless configuration ideas for their DRIVER and LOAD figures for whatever "Gizmo"
they are building. A young healthy human can generate about 300 Watts tops,, for a while.

These is all you really need to know is:
1 HP = 745 Watts / This is the conversion figure of electrical power to mechanical power and vis-versa.
From the HP and YOUR amp load figure you can calculate any required TORQUE figures for YOUR
specific driver and YOUR specific LOAD which WE do not know
NOTICE FOR ANY OF YOU A.E. NOVICES OUT THERE:

A battery is basically a BIG capacitor in electronic terms. Once your batteries
are fully charged you must THEN stop putting any additional power into it!

WIND TURBINE DESIGNERS HINT - When picking out a PMA/PMG the better
choice is the higher voltage model. You don't want to be under powered.
You MUST always exceed the batteries voltage to produce ANY net gain.

Ohms law calculator

WIND TURBINE DESIGNERS HINT -
When picking out a PMA/PMG the better choice is the higher voltage model. You don't want to
be under powered. You MUST always exceed the batteries voltage to produce ANY net gain.

SEE A GRID TIED EXERCISE BICYCLE - http://www.youtube.com/watch?v=NLlRR2KfhMo



HYDRO INFO


All of our PMA/PMG's produce unregulated D.C. voltage and may require a charge controller for smaller batteries banks or non-grid connected applications.

See XANTREX grid tie systems and more info on spinning your power meter backwards.

(PMA/PMG's have no over heat protection. Please use the appropriate fuses to protect your PMA/PMG coils)


TECH NOTES:

Taking apart a PMA/PMG the right way.

1. Remove the 4 housing bolts and pull the front housing off OVER the shaft. Never pull the rear housing off first!!!!
If it is jammed or rusted use some WD-40 on the shaft and alternately tap the mounting wings with a hammer while applying pressure to the shaft with your thumb so that the stator and it's delicate wiring harness is kept in place. NOTE: If the shaft is UCored-up badly you may have to sand the shaft down to it's original 17mm size to get the front housing off.

2. Now grab the exposed rotor core shaft and pull it out WHILE holding down the stator ring with your index
finger and thumb. This will take LOTS of strength!!!!! If you fail to hold the stator in place the core and stator
will be extracted together and the wires will be torn off the stator and this is unrepairable! This is a tricky maneuver and usually takes some experience and lots of muUCle!!!!!!!

3. Once the rotor core has been successfully extracted the rectifier connections are exposed and you may now unfasten the three wire nuts to safely remove the stator coil. (To reassemble simply reverse procedure)


Warranties will be void on any PMA/PMG that is opened by a customer.
Any PMA/PMG experimentation and examination is at your own risk.



















CLICK DRAWING TO ENLARGE

Three phase units need a rectifier BUY IT HERE


WATER IN YOUR PMA/PMG

Our PMA/PMG's can get very hot so they need air ventilation holes.
Rain water and snow will not harm them.
Most people do not realize that rain water cannot conduct electricity!
Only water with minerals in it can conduct power like tap and ground water.
However PMA/PMG's can rust so please coat them with Varnish to insure a long life!

BATTERY TALES:

Hints for people that are attempting to operate a household and are not on the grid:
Get a fork lift battery! Try calling places that sell used fork lifts. The 12 volt batteries that run fork lifts are the best! Many of these old batteries are diUCarded because they can no longer operate a fork lift for a full 8 hour work day but they still have enough operational life to run your household for many decades. Many can be bought at recycling prices and still have 100 times more amperage than a brand new bank of automotive type batteries that will only last for 2 or 3 years.

Lifespan of battery types while engaged in demanding alternative energy use:
Cheapest bargain store bought automotive battery - 6 to 8 months life before it goes to the junk heap.
Professional battery store bought T105 battery - 2 to 3 years life before it goes to the junk heap.
Professional battery store bought L-16 battery - 4 to 7 years life before it goes to the junk heap.
Industrial bought Fork Lift battery - The one I own is 31 years old now, I will let you all know when it finally dies.

Customer Comments: "My fork lift battery has been powering our home for 27 years now and still charging strong!
I feel sorry for the people using 105's or L-16's, that is a great way to go if your goal is to
create a mountain of useless lead within your life time or run out of power in the middle of dinner.
This is the best advice you are ever going to get and it is your funeral if you do not listen!
Our 12 volt /110 AC inverters can run for weeks at a time on our monster sized fork lift battery."

WATER IN YOUR PMA/PMG

Our PMA/PMG's can get very hot so they need air ventilation holes.
Rain water and snow will not harm them.
Most people do not realize that clean rain water cannot conduct low voltage electricity!!!
Only water with minerals in it can conduct electricity like tap, ground/well water.
However PMA/PMG's can rust so please coat them with Varnish to insure a long life!


AIR BORN POWER Electricity in the air / Airplane emergency power APP (Air Power Plant)





TECH NOTES:

Taking apart a PMA the right way.


http://www.youtube.com/watch?v=fwap_Jl0in8

Warranties will be void on any PMA that is opened by a customer.
Any PMA experimentation and examination is at your own risk.












CLICK DRAWING TO ENLARGE


Questions??? For Fast Email Service Email Us Please.

For FAST Technical Support Please Email Us Now!

and CHECK OUT



NO PAPER company policy. We have no written literature.
Over 175,000,000 tons of paper and other wood products are dumped into landfills annually world over.
We offer only non-polluting electronically generated information that is served here on this web site.
