WORLD'S MOST POWERFUL PMA/PMG's - WE MAKE PMA/PMG's WITH "SCIENCE ADDED"

By Hornet Power Systems




Use these powerful permanent magnet alternators (PMA/PMG's) to make cheap
electricity from Wind, Hydro, Steam and Bio-Diesel power systems.
Stop wasting up to 50% of your power energizing the
coil of standard brush type alternators. Get a real PMA/PMG!

Permanent magnet alternators are by no means standard "Automotive"
alternators containing brushes and electro-magnetic coils. A PMA/PMG does
not waste power by having to continuously create an energy intensive magnetic field.

We sell only highly efficient - long lasting true permanent magnet alternators!

For PMA/PMG Testimonials Click Here

PMA/PMG PARTS LINK

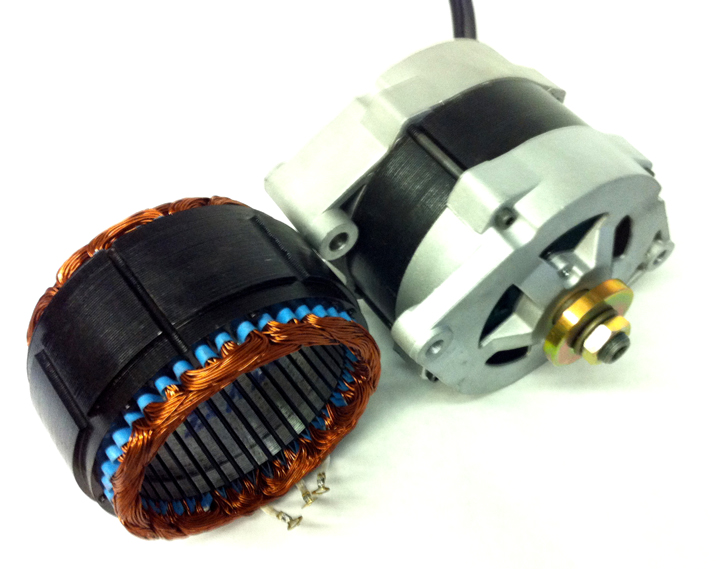

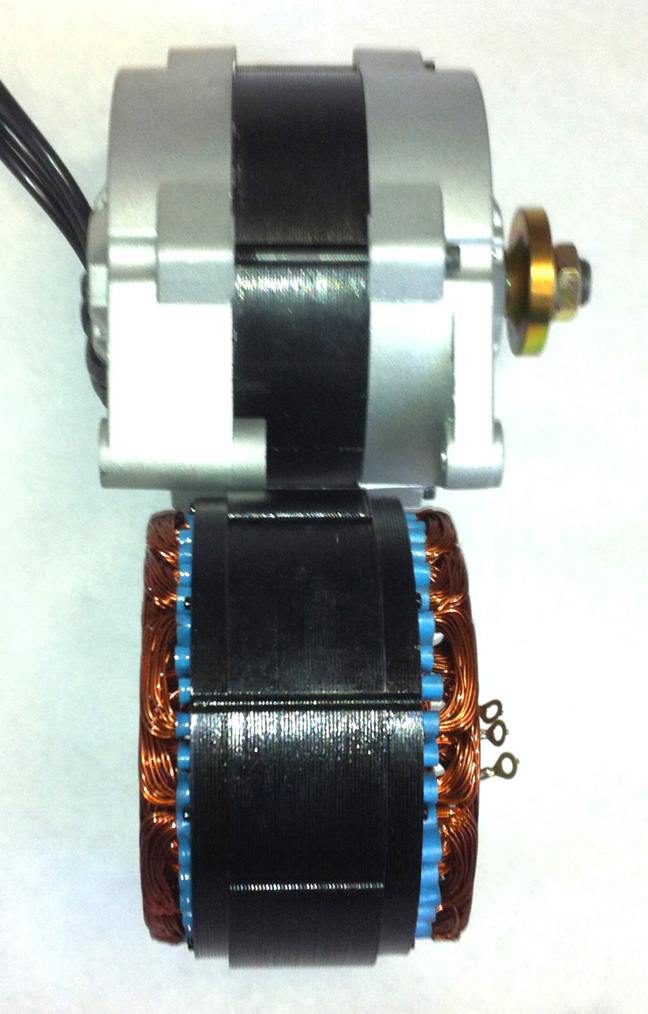

NEW DUAL MAG
DOUBLE WIDE PMG'S
GREAT FOR 12 AND 24 VOLT SYSTEMS

Available in 3 PHASE ONLY
Buy a DC rectifier here LINK

http://www.youtube.com/watch?v=-D0dD6IO0uQ
http://www.youtube.com/watch?v=D2COEJ5QJbI

See our largest 3500 Watt Generator - CLICK HERE


LOW RPM TYPE PMG/PMA
FOR ENGINE'S with cooling fan




12 VOLT PMA W/FAN COOLING
MADE FOR BATTERY 12V CHARGING
2700 RPM MAXIMUM! 3500 Watts +
#DC1212AC DUAL CORE PMG/PMA NOW -
Only $599.95 plus $59.50 S&H fee.

SEE VIDEO - https://www.youtube.com/watch?v=SM7T5g2U_jM



2700 RPM MAXIMUM!

Power at max amps is rated as a DEAD SHORT on our charts! That is to be used as a guide line sine we DO NOT know your loads in ohms. To operate at a dead short is impossible so figure roughly 25% of this amperage at a 80% duty cycle or 20% at a 100% duty cycle. As a rule you may never set the RPM so that these PMA's are making over 4000 watts! To do so would over heat the coils.


48 VOLT PMA W/FAN COOLING
MADE FOR BATTERY 12V CHARGING
2700 RPM MAXIMUM! 3500 Watts +
#DC1248AC DUAL CORE PMG/PMA NOW -


Only $599.95 plus $59.50 S&H fee.

SEE VIDEO - https://www.youtube.com/watch?v=SM7T5g2U_jM



2700 RPM MAXIMUM!

Power at max amps is rated as a DEAD SHORT on our charts! That is to be used as a guide line sine we DO NOT know your loads in ohms.
To operate at a dead short is impossible so figure roughly 25% of this amperage at a 80% duty cycle or 20% at a 100% duty cycle.
As a rule you may never set the RPM so that these PMA's are making over 4000 watts! To do so would over heat the coils.

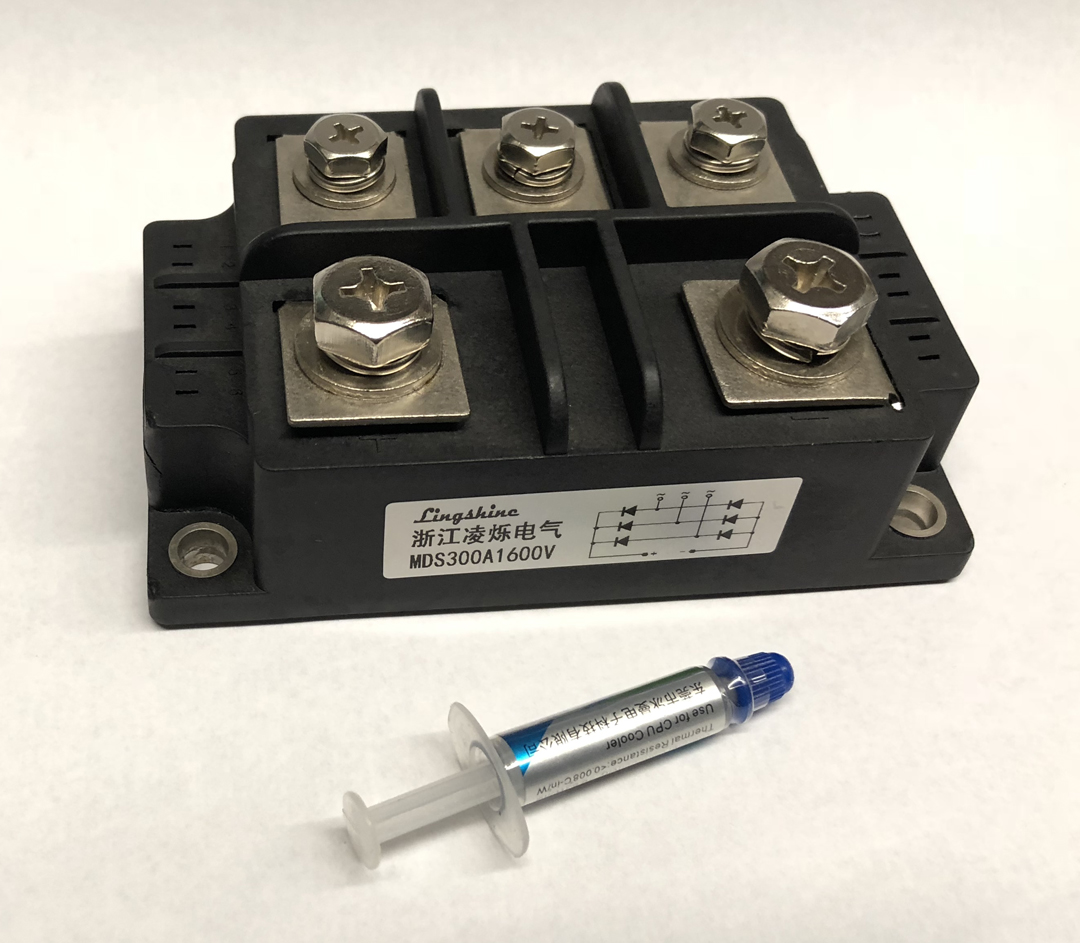

Do not forget to buy special AC to DC rectifier
300 Amp $89.95





LOW RPM TYPE PMG/PMA
For wind turbines with KT blades

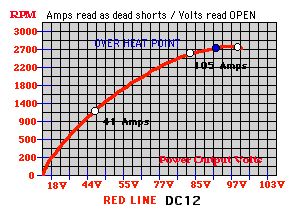

#DC12 DUAL CORE PMG/PMA NOW -
Only $499.95 plus $59.50 S&H fee.



Power at max amps is rated as a DEAD SHORT on our charts! That is to be used as a guide line sine we DO NOT know your loads in ohms.
To operate at a dead short is impossible so figure roughly 25% of this amperage at a 80% duty cycle or 20% at a 100% duty cycle.
As a rule you may never set the RPM so that these PMA's are making over 3000 watts! To do so would over heat the coils.

3000 Watts max. for wind turbine (4000 watts max with cooling fan)
3500 RPM max. (The charts are take at higher RPM for testing only)



LOW RPM TYPE PMG/PMA
For wind turbines with KT blades

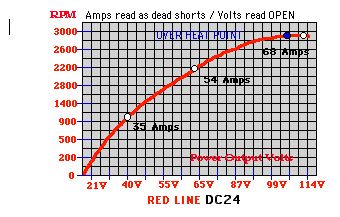

#DC24 DUAL CORE PMG/PMA NOW -
Only $499.95 plus $59.50 S&H fee.



Power at max amps is rated as a DEAD SHORT on our charts! That is to be used as a guide line sine we DO NOT know your loads in ohms.
To operate at a dead short is impossible so figure roughly 25% of this amperage at a 80% duty cycle or 20% at a 100% duty cycle.
As a rule you may never set the RPM so that these PMA's are making over 3000 watts! To do so would over heat the coils.

2700 RPM MAXIMUM!





LOW RPM TYPE PMG/PMA
For wind turbines with KT blades

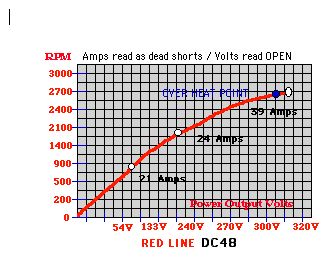

#DC48 DUAL CORE PMG/PMA NOW -
Only $499.95 plus $59.50 S&H fee.




Power at max amps is rated as a DEAD SHORT on our charts! That is to be used as a guide line sine we DO NOT know your loads in ohms.
To operate at a dead short is impossible so figure roughly 25% of this amperage at a 80% duty cycle or 20% at a 100% duty cycle.
As a rule you may never set the RPM so that these PMA's are making over 3000 watts! To do so would over heat the coils.

2700 RPM MAXIMUM!










2700 RPM MAXIMUM!



Questions??? For Fast Email Service Email Us Please.

For FAST Technical Support Please Email Us Now!

and CHECK OUT



NO PAPER company policy. We have no written literature.
Over 175,000,000 tons of paper and other wood products are dumped into landfills annually world over.
We offer only non-polluting electronically generated information that is served here on this web site.
